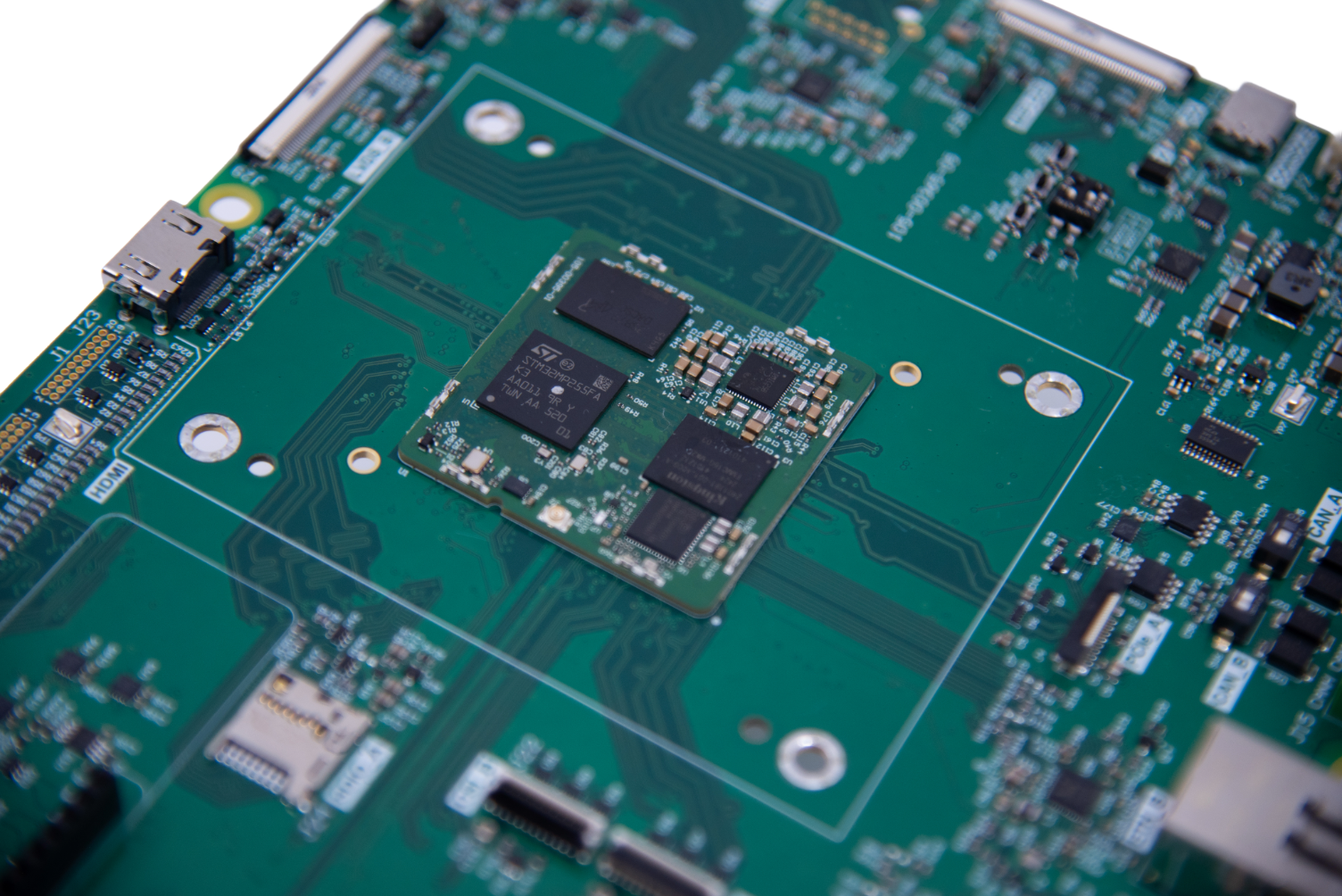

00395 — STM32MP257F OSM-L with IW610

Vendor	STMicroelectronics
Processor	STM32MP257F
Form Factor	OSM-L
Wireless Module	NXP IW610 Dual-Band Wi-Fi 6 BLE

Resources

• Quick Start Guide

• Datasheet

Software Releases

See yocto.cargt.com for available images and releases. Software updates use RAUC A/B bundles; see RAUC A/B OTA Updates — STM32MP2 (00395-01-00365 / 00395-02-00365).

Yocto

scarthgap (kernel 6.6.78)

Release	Machine	Packages	Pre-built Images
scarthgap (kernel 6.6.78)	stm32mp25-cargt-00395-02-00365	Packages	Images
scarthgap (kernel 6.6.78)	stm32mp25-cargt-00395-01-00365	Packages	Images
scarthgap (kernel 6.6.78)	stm32mp25-cargt-00395-00365v3	Packages	Images

The -01 and -02 machines are for the two 00395 SOM variants. Use the one that matches the part number on your SOM. stm32mp25-cargt-00395-00365v3 is for the older revision 3 of the 00365 carrier; it uses a single-bank layout, without RAUC A/B updates.

Source Code

• stm32mp_manifest - Yocto repo manifest

• meta-st-cargt - Cargt BSP layer

• meta-cargt-stm32mp-addons - Additional Cargt layer

Thermal Performance

See STM32MP257F (00395) results in Thermal Characterization of Cargt SOMs for how much air temperature and load this SOM handles without a heatsink.

Compatible Carrier Boards

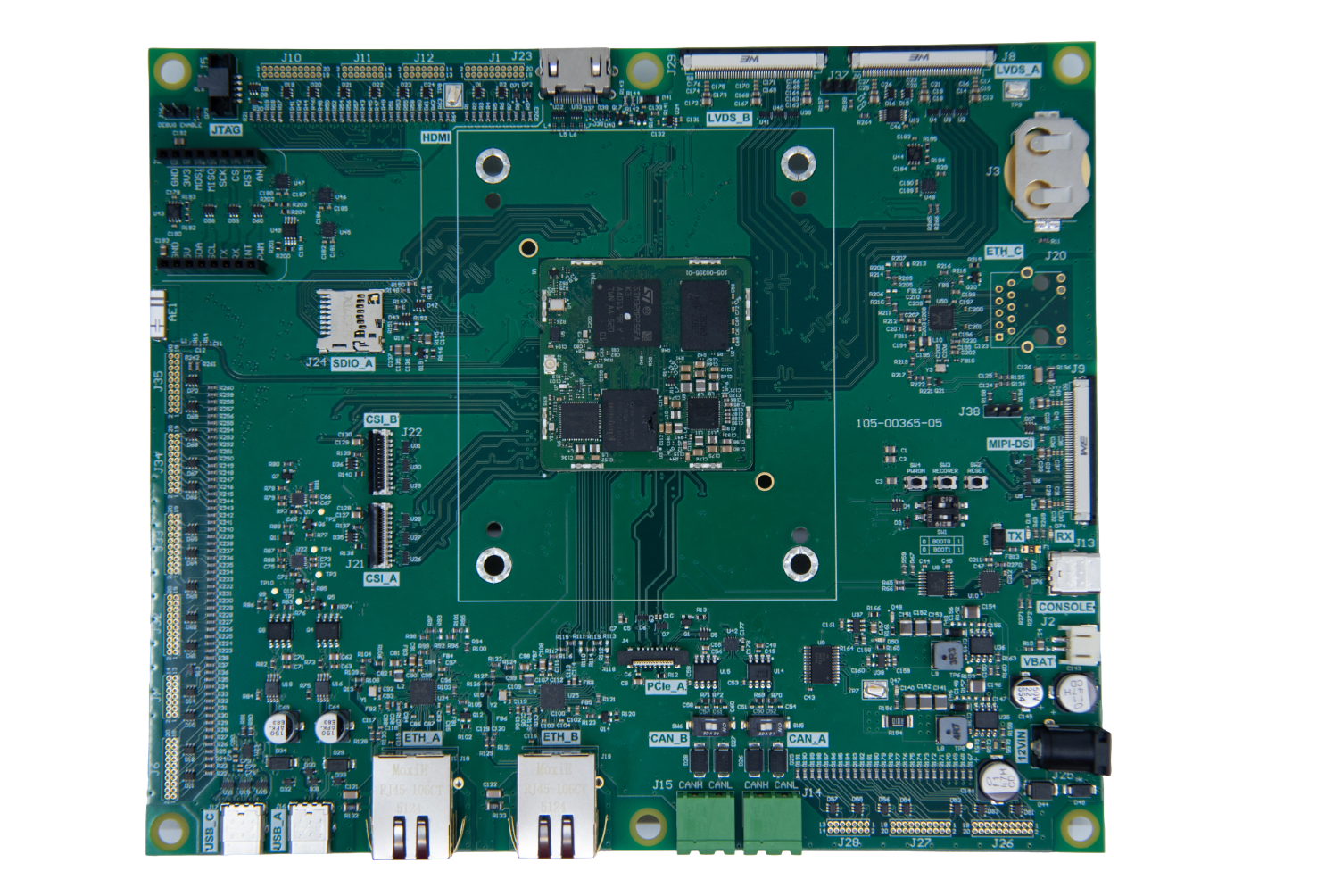

• 00365 — OSM-L Carrier Board
